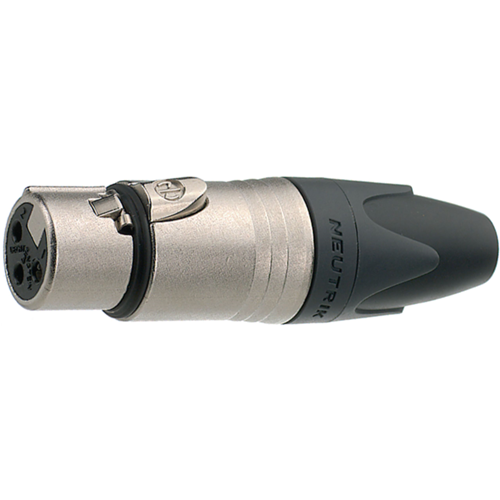

Connettore XLR Femmina Metallo

Forma costruttiva compatta e corta
Contatto a lamelle 7 volte
Dispositivo antitrazione
Montaggio semplice, nessun pezzo volante
Protezione antipiega incorporata per cavo ø 3.5...8 mm

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Product
&bull: Connector Type: XLR
&bull: Gender: female

Electrical
&bull: Capacitance between contacts: ≤: 4 pF
&bull: Contact resistance: ≤: 3 mΩ:
&bull: Dielectric strength: 1,5 kVdc
&bull: Insulation resistance: > 2 GΩ: (initial)
&bull: Insulation resistance: > 1 GΩ: (after damp heat test)
&bull: Rated current per contact: 16 A
&bull: Rated voltage: 50 V

Mechanical
&bull: Cable O.D.: 3.5 - 8.0 mm
&bull: Insertion force: ≤: 20 N
&bull: Withdrawal force: ≤: 20 N
&bull: Lifetime: > 1000 mating cycles
&bull: Wire size: max. 2.5 mm²
&bull: Wire size: max. 14 AWG
&bull: Wiring: Solder contacts
&bull: Locking device: Latch lock

Material
&bull: Boot: Polyuretan
&bull: Bushing: Polyamide (PA 6 15% GR)
&bull: Contact plating: 2 um Ag
&bull: Contacts: Bronze (CuSn8)
&bull: Insert: Polyamide (PA 6.6 30 % GR)
&bull: Locking element: Zinc diecast (ZnAl4Cu1)
&bull: Shell: Zinc diecast (ZnAl4Cu1)
&bull: Shell: plating Nickel
&bull: Strain relief: Polyacetal (POM)

Environmental
&bull: Flammability UL 94 HB
&bull: Standard compliance IEC 61076-2-103
&bull: Protection class IP 40
&bull: Solderability: Complies with IEC 68-2-20
&bull: Temperature range: -30 °C to +80 °C
