IEEE 802.3bt gigabit 60w Poe ++ Injecteur

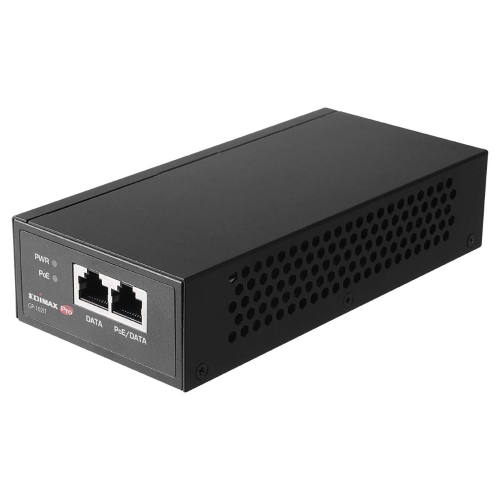

The Edimax GP-102IT is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 60W based on the IEEE 802.3bt standard and the data that comes from a non-PoEswitch or router are merged together and then transmitted to the remote IEEE 802.3af/at/btcompliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play GP-102IT Gigabit PoE++ injector preserves your investment in hardware upgrade without the need for spending on extra PoEswitches and deploying power cables.

IEEE 802.3af/at/btPower over Ethernet Standard
Because of adding the capability of IEEE 802.3af/at/btPower over Ethernet (PoE) to a non-PoEEthernet switch or router, the GP102IT can directly be connected to any IEEE 802.3af/at/btend-nodes such as PTZ (Pan, Tilt & Zoom) /speed dome IP cameras, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points, digital signage, information kiosk, POS system, and thin client where the IEEE 802.3af/at/btin-line PoEport is supported.

Higher Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-102IT reduces the need for cable installation and eliminates the need for extension cords, electrical wall outlets, ceiling or any remote, unreachable place for the PoEenabled devices with easy plug-and play installation. All In all, it lowers the installation costs and simplifies the deployment effort.

Flexible & Reliable Power Supply
Offering the optional solution for PoEenable devises, the GP-102IT is the perfect addition to existing non-PoEnetwork infrastructures or retrofit projects. Featuring PoEshort circuit protection and over circuit protection to safeguard network devices and protect against damage. Supplying the PoEpower of up to 60 watts through the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.

PoEStandards and Powered Devices (PDs) Supported
The GP-102IT Gigabit PoE++ injector complies withIEEE 802.3bt (PoE++), IEEE 802.3at (PoE+)and IEEE 802.3af (PoE) Standards and supportsvarious PoEdevices (PDs) up to 60W.
