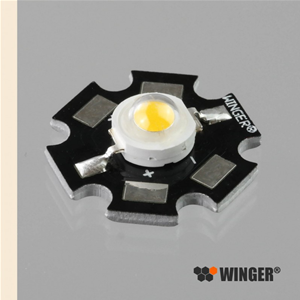

LED Star 3W SMD avec base blanche 3200k
Utiliser la roulette de la souris pour agrandir l'image
| Prix: | €2,50 TVA incluse |
|---|---|
| Frais de port: | A partir de € 6,15 TVA incluseDétails |
| Cod. art.: | CEL47.0126 |
| Marca: | WINGER |
| U.M.: | PZ |
| Qtà minima ordinabile: | 1 |
| Disponibilité: | DISPONIBLE SOUS PEU |
| Quantité: |
Feedback des utilisateurs
Description
Product Specification
WINGER® WEPWW3-S1 Power LED Star warmwhite (3200K) 3W - 210 Lumen
These LEDs on a Star-PCB are characterized by a very favourable price/performance ratio.
Using a 700mA constant current driver is recommended. Ensure sufficient heatsink for the LED.
Technical specifications
Package: Star-PCB, 21.4 x 19.9mm
Max. luminous intensity: 210lm
Viewing angle: 120° Color temperature: 3200K
Forward voltage: 3.4V Emitting color: warm white
Forward current (max): 700mA
Power dissipation: 3W
Operating temperature range: -20°C ~ 60°C
Storage temperature: -30°C ~ 60°C
Solder temperature: 260°C (5 sec.)
Recommended resistors
Supply voltage Resistor value
5V 3.3 Ohm / 2W
9V 8.2 Ohm / 5W
12V 12 Ohm / 6W
13,8V (Car) 15 Ohm / 8W
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
WINGER® WEPWW3-S1 Power LED Star warmwhite (3200K) 3W - 210 Lumen
These LEDs on a Star-PCB are characterized by a very favourable price/performance ratio.
Using a 700mA constant current driver is recommended. Ensure sufficient heatsink for the LED.
Technical specifications
Package: Star-PCB, 21.4 x 19.9mm
Max. luminous intensity: 210lm
Viewing angle: 120° Color temperature: 3200K
Forward voltage: 3.4V Emitting color: warm white
Forward current (max): 700mA
Power dissipation: 3W
Operating temperature range: -20°C ~ 60°C
Storage temperature: -30°C ~ 60°C
Solder temperature: 260°C (5 sec.)
Recommended resistors
Supply voltage Resistor value
5V 3.3 Ohm / 2W
9V 8.2 Ohm / 5W
12V 12 Ohm / 6W
13,8V (Car) 15 Ohm / 8W
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
