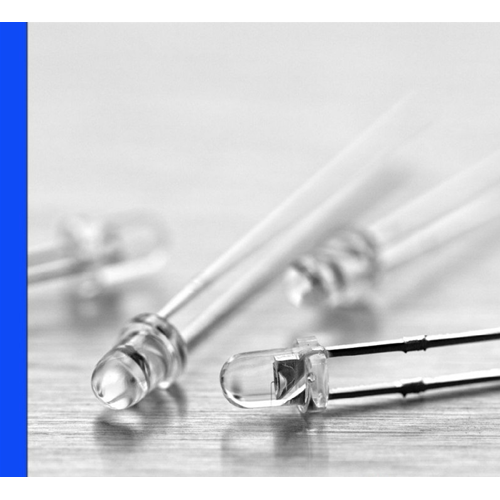

LED bleu 3 mm 6000mcd
Utiliser la roulette de la souris pour agrandir l'image
| Prix: | €0,50 TVA incluse |
|---|---|
| Frais de port: | A partir de € 6,03 TVA incluseDétails |
| Cod. art.: | CEL47.0086 |
| Marca: | WINGER |
| U.M.: | PZ |
| Qtà minima ordinabile: | 1 |
| Disponibilité: | DISPONIBLE Expédition dans les 24 heures - Disponible à notre. site |
| Quantité: |
Feedback des utilisateurs
Description
LED 3mm blue 6000mcd WEBBL06-CS
3mm LEDs and the 5mm LEDs are the standard types. Because of the enormous brightness and the very small size there are limitless applications. So, they are especially for modelling or for control and display lighting, effect lighting, as well as in the automotive industry.
Technical specifications
Package: 3mm waterclear Max. luminous intensity: 6000mcd
Viewing angle: 25° Wavelength: 470nm
Forward voltage: 3.2V Emitting color: blue
Forward current (max): 20mA Color purity: 96%
Power dissipation: 0.08W Chromaticity coordinates (X/Y): 0.133 / 0.062
Operating temperature range: -20°C ~ 50°C
Storage temperature: -40°C ~ 80°C
Solder temperature: 260°C (5 sec.)
Recommended resistors
Supply voltage Resistor value
5V 91 Ohm
9V 330 Ohm
12V 470 Ohm
13,8V (Car) 560 Ohm
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
3mm LEDs and the 5mm LEDs are the standard types. Because of the enormous brightness and the very small size there are limitless applications. So, they are especially for modelling or for control and display lighting, effect lighting, as well as in the automotive industry.
Technical specifications
Package: 3mm waterclear Max. luminous intensity: 6000mcd
Viewing angle: 25° Wavelength: 470nm
Forward voltage: 3.2V Emitting color: blue
Forward current (max): 20mA Color purity: 96%
Power dissipation: 0.08W Chromaticity coordinates (X/Y): 0.133 / 0.062
Operating temperature range: -20°C ~ 50°C
Storage temperature: -40°C ~ 80°C
Solder temperature: 260°C (5 sec.)
Recommended resistors
Supply voltage Resistor value
5V 91 Ohm
9V 330 Ohm
12V 470 Ohm
13,8V (Car) 560 Ohm
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
