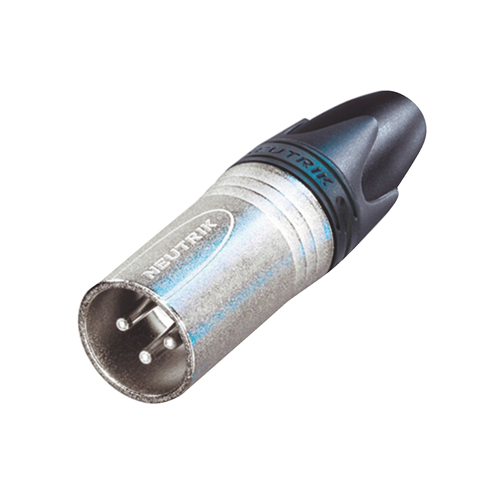

Conector masculino de metal

Forma costruttiva compatta e corta
Contatto a lamelle 7 volte
Dispositivo antitrazione
Montaggio semplice, nessun pezzo volante
Protezione antipiega incorporata per cavo ø 3.5...8 mm

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.


TECHNICAL DATA

Product
&bull: Connector: Type XLR
&bull: Gender: male

Electrical
&bull: Number of contacts: 3
&bull: Contact resistance: ≤: 3 m
&bull: Insulation resistance initial: > 2 G
&bull: after damp heat test: > 1 G
&bull: Dielectric strength: 1500 V dc
&bull: Rated current: 16 A
&bull: AWG: 2.5 mm²/14 AWG
&bull: Capacitance between contacts: ≤: 4 pF

Mechanical
&bull: Lifetime: >1000 cycles
&bull: Insertion / withdrawal force: ≤: 20 N
&bull: Cable O.D. range: 3.5 mm - 8.0 mm

Materials
&bull: Shell: ZnAl4Cu1, gal Ni over Cu plating
&bull: Insert: PA 6.6 30% GR (glass reinforced)
&bull: Contacts: CuZn39Pb3
&bull: Contact surface: gal 2 um Ag
&bull: Strain-relief clamp: POM
&bull: Antikink bushing: PUR

Environmental
&bull: Flammability: UL 94 HB
&bull: Standard compliance: IEC 61076-2-103
&bull: Protection class: IP 40
&bull: Solderability: Complies with IEC 68-2-20
&bull: Temperature range: -30 °C to +80 °C
