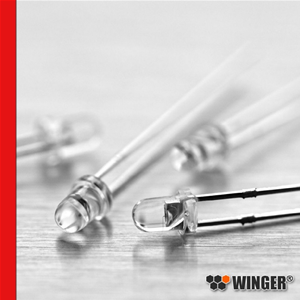

LED 3mm Red 8000mcd
Use Mouse Wheel to Zoom In/Out
| Price: | €0,20 VAT included |
|---|---|
| Freight costs: | From € 6,01 VAT includedDetails |
| Item code: | CEL136 |
| Brand: | WINGER |
| U.M.: | PZ |
| Qtà minima ordinabile: | 1 |
| Availability: | AVAILABLE Shipping within 24 hours - Available at our. site |
| Quantity: |
Users feedback
Description
LED 3mm red 8000mcd WEBRD08-CS
3mm LEDs and the 5mm LEDs are the standard types. Because of the enormous brightness and the very small size there are limitless applications. So, they are especially for modelling or for control and display lighting, effect lighting, as well as in the automotive industry.
Technical specifications
Package:3mm waterclearMax. luminous intensity:8000mcd
Viewing angle:20°Wavelength:620nm
Forward voltage:2.2VEmitting color:red
Forward current (typ/max):20mA / 30mAColor purity: 99%
Power dissipation:0.08WChromaticity coordinates (X/Y):0.694 / 0.302
Operating temperature range:-20°C ~ 50°C
Storage temperature:-40°C ~ 80°C
Solder temperature:260°C (5 sec.)
Recommended resistors
Supply voltageResistor value
5V150 Ohm
9V330 Ohm
12V560 Ohm
13,8V (Car)620 Ohm
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
3mm LEDs and the 5mm LEDs are the standard types. Because of the enormous brightness and the very small size there are limitless applications. So, they are especially for modelling or for control and display lighting, effect lighting, as well as in the automotive industry.
Technical specifications
Package:3mm waterclearMax. luminous intensity:8000mcd
Viewing angle:20°Wavelength:620nm
Forward voltage:2.2VEmitting color:red
Forward current (typ/max):20mA / 30mAColor purity: 99%
Power dissipation:0.08WChromaticity coordinates (X/Y):0.694 / 0.302
Operating temperature range:-20°C ~ 50°C
Storage temperature:-40°C ~ 80°C
Solder temperature:260°C (5 sec.)
Recommended resistors
Supply voltageResistor value
5V150 Ohm
9V330 Ohm
12V560 Ohm
13,8V (Car)620 Ohm
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
